FEMTOSPEX surface dynamics

Excited states dynamics with x-rays @ BESSY-VSR at UE56_1-PGM

The end station FEMTOSPEX Surface Dynamics enables angle- and time-resolved photoelectron spectroscopy. The acceptance angle of the spectrometer is max. 60 °. The time resolution is given by the pulse length of the X-ray pulses from Bessy. Femtosecond slicing can be used. The pump laser offers a maximum repetition rate of 6kHz with about 1.2mJ per pulse (800nm). The second harmonic (400nm) can be used without any problems. The use of an OPA is also possible.

Selected Applications:
  • CHC Spectroscopy
  • time-resolved Photo Electron Spectroscopy
  • Photo Electron Diffraction

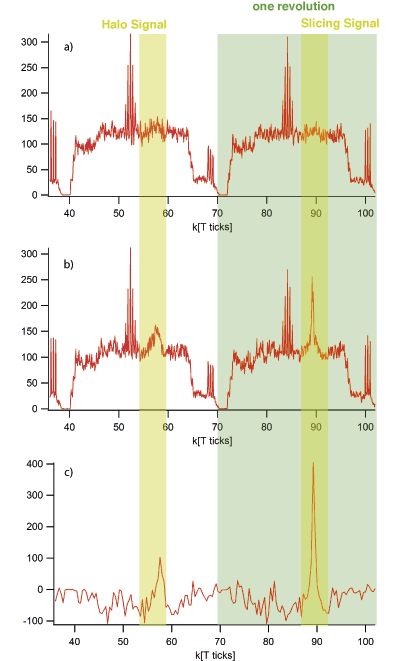

Sliced and unsliced raw data of Au 4f lines. a) Slicing off b) slicing on c) Difference of a) and b)

Sliced and unsliced raw data of Au 4f lines. a) Slicing off b) slicing on c) Difference of a) and b)


Methods

Time-resolved absorption, Time-resolved PES

Remote access

not possible

Beamline data
Energy range 60 - 1300 eV
Energy resolution > 100,000 at 64 eV, > 20,000 at 400 eV
Flux 2.5·1011
Polarisation • linear horizontal vertical
• circular
Focus size (hor. x vert.) 85 µm (hor) x 15 µm (vert, dep. on exit slit)
Phone 17980, 17981, 17982
More details UE56-1_PGM
Station data
Temperature range 20K - 400K
Pressure range 2e-10mbar up to 1e-6mbar
Detector VG Scienta ARTOF EW 60° lens.
Manipulators 5 axis manipulator
Sample holder compatibility Omicron flag style sample holders
Additional equipment 2 sputter guns, Auger-LEED system
Sample Preparation Sputter gun, In situ cleaving, gas dosing system, evaporator, quartz balance, electron bombardement heating

Time resolved electronspectroscopy on solid surfaces with femtosecond and picosecond laser-pump/X-ray-probe ArTOF spectroscopy and method development for BESSY-VSR
