BESSY II+ Upgrade

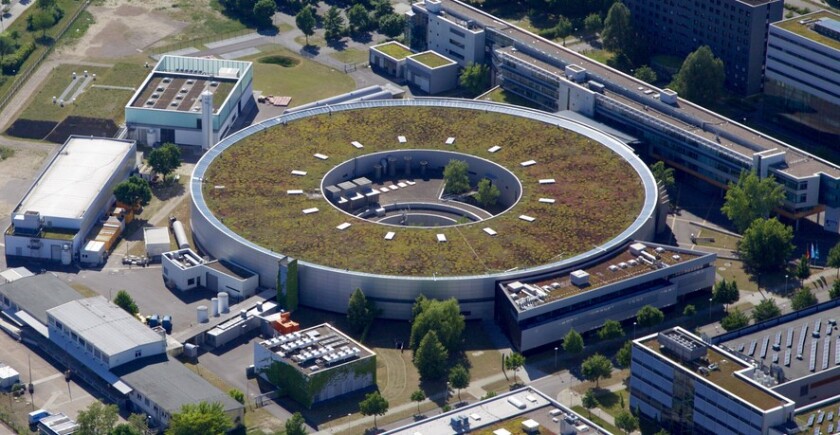

BESSY II has now been in operation for more than 20 years and will remain in operation at least until 2035. Keeping BESSY II at the forefront of science and technology development requires the transition from a unique and highly productive analytical tool towards a materials discovery and innovation hub. With a clear focus on operando methods for energy research, and along the chain “generation of light, use of light, data generation, data handling”, BESSY II+ will provide new possibilities for our research, our users, and our partners.
New beamlines and endstations
New beamlines and endstations, complemented by state-of-art sample environment and laboratories will provide unique possibilities for science. The focus on energy research from photovoltaics over chemical energy conversion and storage to energy efficiency mirrors HZB’s own research as well as the strong interaction with our partners from MPG, PTB and academia.
Enhanced Liquid Interface Spectroscopy and Analysis ELISA

With ELISA (Enhanced Liquid Interface Spectroscopy and Analysis) a novel infrastructure for the investigation of liquid-vapor and liquid-solid interfaces will be implemented shortly on two new dipole beamlines. The investigation of liquid interfaces under operating conditions will improve the understanding of, e.g., the sequestration of CO2 by the oceans, the uptake and release of trace gases by aerosol droplets and thus enable more precise climate models.
Uniqueness: A combination of X-ray with IR radiation, incident on the sample at the same time and the same location, has attracted strong attention, but has so far not been realized anywhere in the world. The ELISA beamline will be the first of its kind and a true “Alleinstellungsmerkmal” for BESSY II and HZB.
Partners: FHI, TU Darmstadt, HZB
Soft-to-Tender X-Ray Spectroscopy – SoTeXS

SoTeXS (Soft-to-Tender X-Ray Spectroscopy) is supposed to extend and complete the HZB portfolio for battery research, where currently 12 beamlines contribute with 10 different methods. Both energy storage and the required sustainability in mobility and transport demand novel battery concepts. The use of abundant, environment friendly materials, detailed insights into operating electrochemical cells, and understanding of degradation processes will lead to new, sustainable and more efficient materials for energy storage (in line with the battery 2030+ roadmap “Sustainable batteries of the future “). In particular, a combination of the soft and tender X-ray regime (here: 0.5 – 5keV) is an excellent way to investigate almost all elements relevant for battery applications and their “behaviour” in batteries at work.
Uniqueness: SoTeXS will be designed for metrological investigations together with the PTB, making it highly attractive for industrial research. It completes the battery portfolio, which is about to be consolidated into a battery hub together with PTB and BAM, to facilitate IR spectroscopy, X-ray emission and absorption (UPS, XPS, HAXPES, NEXAFS, EXAFS), Resonant Inelastic Scattering (RIXS), small and wide angle scattering (SAXS, ASAXS, WAXS), imaging and tomography.
Partners: HZB, PTB
Near Ambient Pressure Electron Microscope NAP-LEEM-XPEEM

Many novel infrastructures allow for a wide range of spectroscopic methods under ambient conditions. However, the important aspect of site heterogeneity, catalytically active impurities or defects across the surface is often missing in integral approaches. A near ambient pressure NAP-LEEM/XPEEM instrument would round off the operando instrument portfolio at BESSY II. As part of the CatLab activities, the MPG has purchased a NAP-LEEM/XPEEM instrument, which combines electron microscopy with a lateral resolution between 8 and 30 nm with photoemission spectroscopy (< 60 meV energy resolution) as an operando tool, focusing on surface reactions in the mbar range at temperatures up to 800°C.
Uniqueness: Combining this instrument with a tunable soft X-ray source would create a worldwide unparalleled instrument. Accommodating it next to SMART and SPEEM would create a complementary spectromicroscopy analysis section for magnetism (SPEEM), high resolution studies of chemically relevant surfaces (SMART) and operando NAP reactions.
Partners: HZB, FHI
Operando Angle Resolved Photoemission ioARPES

ioARPES will be built upon the strengths of BESSY II in angle resolved photoemission for electronic band structure determination, and will provide highest energy and angle (momentum) resolution and improved spatial resolution. In a future transition from transistor-based electronics to versatile quantum-material-based technologies, understanding electronic band structures and their tunability by external stimuli such as electric current, bias voltage, electric fields, temperature or strain is crucial. While ioARPES will not strive for record spatial resolution it puts its strength on operando experiments.
Uniqueness: The versatile application of electric fields, bias voltages, mechanical strain at low temperatures in the laboratory-on-a-chip is the main purpose of the instrument.
Partners: HZB, RHTW Aachen, TU Dresden, IFW, FUB
FemtoSpeX-HR

Ultrafast non-equilibrium dynamics studies aim at controlling material properties near ultimate speed and efficiency limits, developing novel concepts for faster and more efficient devices. Particularly for ultrafast spin dynamics, the present BESSY II Femtoslicing beamline is a world-wide unique research tool, albeit with a rather low energy resolution. Very recent experimental and theoretical work show that higher energy resolution is highly desirable to track not only spin but also electronic excitations and explore spatial inhomogeneity; both seem to play crucial but so far largely unexplored roles in magnetic dynamics. Femto- SpeX-HR aims at enabling these studies.
Uniqueness: The Femtoslicing facility is optimized for magnetic dynamics studies with soft X-rays. As the time structure of competing Free Electron Lasers (FELs) is not well matched, the quality of magnetic dynamics data from FELs is no better than that from Femtoslicing. Uniquely, FemtoSpeX-HR benefits from the optimised research environment for spin and electronic dynamics experiments developed at BESSY II. Laser-based sources for the VUV range, the other competitor, do not provide the needed spectroscopic sensitivity; soft X-ray pulses are the probe of choice.
Partners: HZB, HU Berlin
Operando Photovoltaic Endstation PRESTO

Presto (operando PV Station) builds on HZB’s worldwide leading role in PV research and is envisioned as a modular endstation for spectroscopy and diffraction experiments on modern and emerging PV materials and their interfaces, up to full solar cells. Research foci are on the identification of bulk and interface defects, as well as quantification of their density, energy levels, formation energy, and passivation behaviour. Presto aims at gaining a comprehensive understanding of critical parameters in PV devices, so that their power conversion efficiency, stability, scalability, and manufacturability can be boosted. The multimodal investigations under device operation conditions, i.e., light exposure (a few suns), electrical biasing, and aging conditions (elevated temperature, humidity, oxidizing agents) push PV research to a new level. It will significantly expand BESSY II’s operando and in-situ capabilities in (HAX)PES, XAS, XRF, IPES, UPS, CFSYS, SPV, and XRD studies.
Uniqueness: While the individual methods are available in numerous large-scale laboratories, the experimental capabilities of Presto are holistic and unprecedented worldwide. In-situ and operando capacity, combined with sample environment and diagnostic sample integrity control, closes the gaps between the present research approaches in the field.
Partners: HZB, HU Berlin
Transition Edge Sensor TES

TES detection pushes the powerful soft X-ray spectroscopic tools (XAS, XES, RIXS) to world leading impurity level characterization and unprecedented low concentration systems. Scientific focus is on catalytic active sites, nucleation processes and materials impurities and doping levels. The superconducting bolometer principle achieves energy resolved single photon detection. This yields unsurpassed performance for excited molecules, active sites, catalytic thin films and nanostructes but also properties such as spin-flip scattering processes in low-dimensional and dilute systems. MPI-CEC as partner forms a bridge to CatLab: The highest-level characterization possibilities of a TES at a high flux beamline with full polarization control is a real asset for the development of novel catalyst systems.
Uniqueness: The investigation by XAS, XES and RIXS with full polarization control of systems with minute amount materials in solids and liquids will be unique at BESSY II.
Partners: MPI-CEC, HZB
Beamline upgrade pink-MX BL14.1ex

Not just since the Corona pandemic, the importance of protein crystallography in medical research has been obvious. With more than 2500 structures in the Protein Data Bank, BL14.1 is one of the most productive stations in Europe. Building on this success, higher throughput (roughly 500 crystals in 24 hours) capabilities by increasing the beamline flux significantly (x25) is desirable and achievable using a new double multilayer monochromator. The photon flux increase will be complemented with further automation efforts and meta data handling towards a fully automatic (unattended) data collection operation.
Uniqueness: BL14.1ex opens avenues towards new crystallographic methods, such as the synchrotron based serial crystallography (SSX) method, which will be of the greatest importance for a future BESSY III MX-beamline.
Partners: HZB
Sample environment and lab infrastructure
Developing and implementing excellent sample environment equipment for BESSY II users has been a central focus point at HZB for a long time. BESSY II users can rely on the expertise of a dedicated sample environment group with a long and wide-ranging experience in the field of synchrotron methods. The core areas for sample environment at BESSY II are tailored operando sample environment for electro-chemical and catalytic experiments and equipment for extreme sample conditions such as low temperatures, magnetic fields, and high pressures.

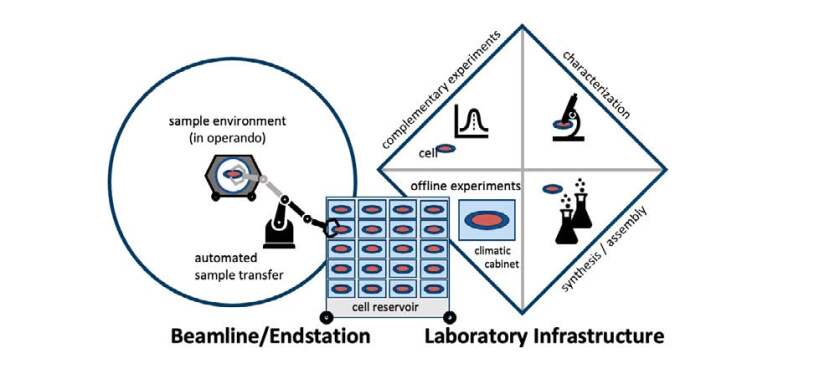

In addition, high sample throughput and remote access capabilities are strengthened by the development of automated, standardized and modular sample environment. This process became crucial during the Corona pandemic when it enabled continued access to BESSY II for external users. Tailored sample transfer boxes have been developed so that MX users could send their samples in a protected environment. Endstations and sample environment control software has been opened for remote user access.
In consequence, and to create unique and outstanding science opportunities at BESSY II for the years to come, HZB plans to further strengthen the sample environment capabilities at BESSY II in
particular by:
- Providing lab space and infrastructure for future complex technical developments and offline measuring stations.
- Establishing robotic approaches and automation, which allow high-throughput investigations with samples in standardized and complex in situ and operando environments such as catalytic reactors and battery cells.
- Expanding the experimental accessible parameter space towards lowest temperatures and the highest magnetic fields, which is indispensable for the understanding of novel quantum materials.

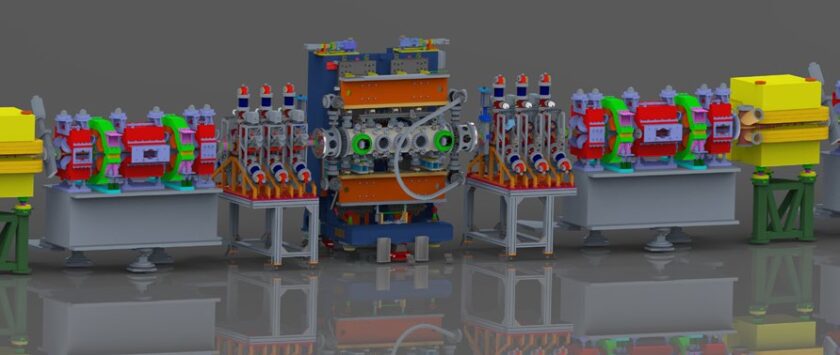

Modernisation and upgrade of the accelerator complex
The BESSY II accelerator complex of pre-injector, booster synchrotron, storage ring and related technical infrastructures is in its 25th year of operation. Modernisation and maintenance measures for the accelerator complex and for the instruments are the backbone for the reliable and stable operation of the facility. Some of these measures are simply intended to replace components which are becoming obsolete and no longer maintainable.
Others are not just replacements but aim to bring a new quality to user operation in terms of higher reliability and stability, or improved or not previously accessible beam parameters. Moreover, some of these projects will also pave the way for the development and realization of technologies needed for the new BESSY III facility. Among the planned measures are:
- A Cryogenic Permanent Magnet Undulator CPMU20 for the SoTeXS beamline
- New superconducting 7T wavelength shifters (WLS) – maintaining hard X-rays for BAM, PTB and the MX community, including measures to improve the cryogenics of CPMU devices
- Normal-conducting active higher-harmonic-cavities (HHC) for improved lifetime control and longitudinal phase space shaping (including new digital low-level RF)
- Permanent magnets for improved energy efficiency
- A BESSY II digital twin for accelerator operation and development
- General preservation and modernisation measures
Modernisation and upgrade of the BESSY II instruments
HZB will have to continue to provide the best possible conditions for user research at BESSY II until 2035 and beyond. Therefore, we propose – in addition to the ongoing regular refurbishment and modernisation activities – to pursue a complementary upgrade program for dedicated beamlines and instruments in order to significantly accelerate urgent research in promising research fields. We therefore concentrate on the following actions at beamlines and instruments where we expect particularly high gains in focus areas of the upgrade:

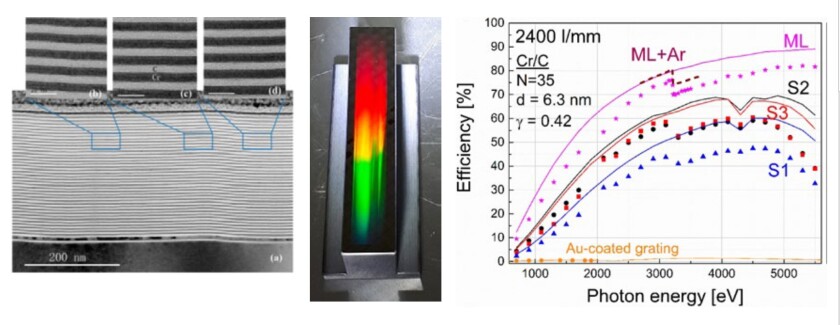

- Continue to push X-ray optics development by improved optics characterization
- Implement new beamline optics and components at dedicated beamlines
- Enable remote access by providing standard solutions particularly for motorization and instrument controls
Sustainable BESSY
The BESSY II campus has an electrical energy demand of 30 GWh per year. Note that the power consumption is around 3.5 MW in winter and 4.5 MW in summer. The daily peak power especially in summer is following the solar insolation due to increased cooling requirements. Obviously, photovoltaics can reduce the overall external electricity demand and will also smoothen the peak loads.

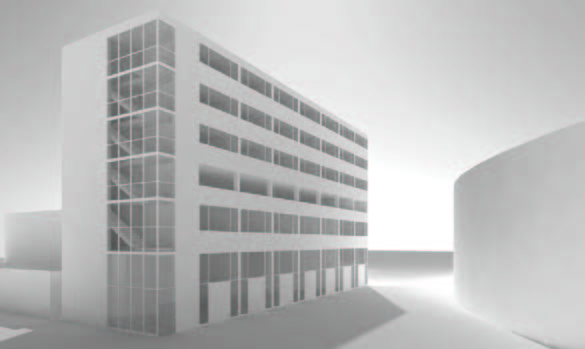

- HZB will construct a new, 6-story Technology Center in close vicinity to BESSY II. The building, which consists of laboratory and office space, will be built according to the silver standard of the Assessment System for Sustainable Building (BNB) and will have solar panels integrated into its facade.
- In order to increase the energy-efficiency of the BESSY II operation, the BESSY II waste heat of 1.200 kWh per year, which is available all year long, will be used for the low temperature heating of the new buildings currently being built at the BESSY II site.
