M4 Bruker tornado

Instrument data

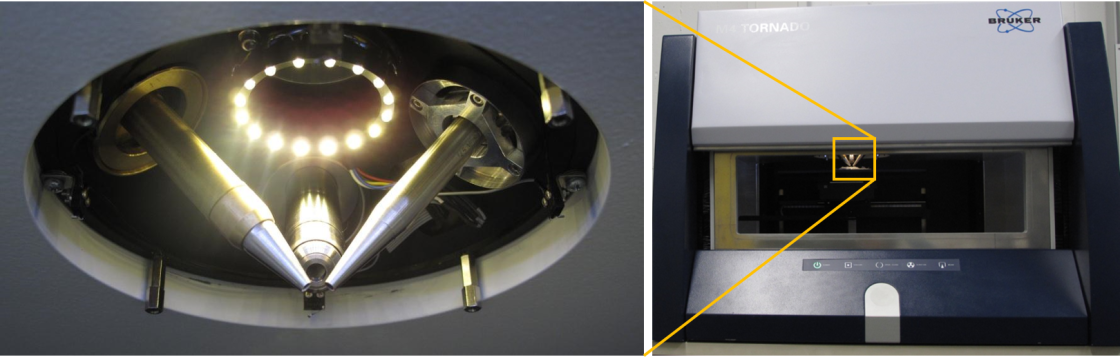

Modified M4 Bruker Tornado

Source

Rh microfocus X-ray tube, 50 V, 1000 µA

Detectors

2 SDD

Optics

Polycapillary full lens for excitation, polycapillary half lens attached to one detector

Optical microscope

10x and 100x magnification

Experimental parameters



Energy range

2 keV – 30 keV (0.5 keV – 50 keV)

Lateral spot size

~38 µm FWHM @ Fe K fluorescence

Depth resolution

~25 µm FWHM @ Cu K fluorescence

Maximal sample size

600 x 400 x 125 mm³

Maximal scan range

200 x 160 x 125 mm³

Environment

Controlled prevacuum (minimum: 1 mbar), air

Stage modus

100 mm/s continuous scan / step-by-step

Lab specification

Temperature and humidity controlled environment
