UE49_PGM SMART
UE49 SMART
The high flux density beamline is specially designed for the high resolution, aberration corrected spectromicroscope SMART. Located in a low-beta section with a round undulator source the PGM beamline illuminates the specimen surface in the SMART electron microscope with an ideal round beam with high flux density. The wide energy range of 100 to 1800 eV gives access to nearly all relevant XPS peaks and NEXAFS adsorption edges, used for chemical contrast in the photoemission electron microscope to study the local chemical composition on the surface in nanometer range.
| Station data | |
|---|---|
| Temperature range | 200 - 1800 K |
| Pressure range | 10-10 - 5x 10-6 mbar |
| More details | SMART |
| Beamline data | |
| Segment | L08 |

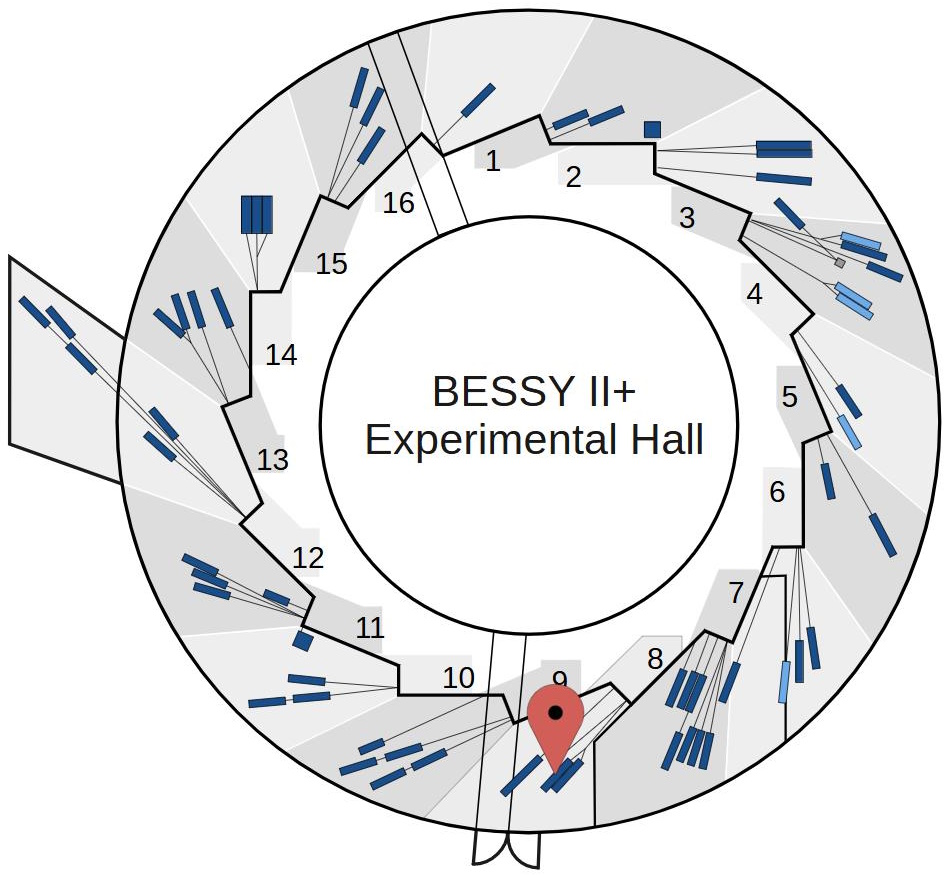

| Location (Pillar) | 9.2 |
| Source | UE49 (Elliptical Undulator) |
| Monochromator | PGM |
| Energy range | 100 - 1800 eV |
| Energy resolution | 10000 at 200 eV |
| Flux | 1011 - 1013 ph/s/300mA |
| Polarisation | variable (linear and circular) |
| Divergence horizontal | at specimen: 11 mrad |
| Divergence vertical | at specimen: 11 mrad |
| Focus size (hor. x vert.) | h x v = 3,7 µm x 5 µm (10 µm x 5 µm on specimen surface) |
| User endstation | not possible |
| Distance Focus/last valve | 350 mm |
| Height Focus/floor level | 1350 mm |
| Beam availability | 12h/d |
| Phone | +49 30 8062 13430 |
The high flux density beamline is specially designed for the high resolution, aberration corrected spectromicroscope SMART. Located in a low-beta section with a round undulator source the PGM beamline illuminates the specimen surface in the SMART electron microscope with an ideal round beam with high flux density. The wide energy range of 100 to 1800 eV gives access to nearly all relevant XPS peaks and NEXAFS adsorption edges, used for chemical contrast in the photoemission electron microscope to study the local chemical composition on the surface in nanometer range. The variable choice of horizontal, vertical and (left/right) circular polarized light enables the investigation of e.g. molecular orientation in organic films or the magnetization in magnetic domains.
