Introduction

To lower the electric energy needed to split water into hydrogen and oxygen, electrocatalysts are in demand which have to be integrated in the photoactive electrode surfaces of a light driven electrolyzer. Under acidic conditions highly efficient materials are noble metal based catalysts, i.e., platinum at the cathode side as hydrogen evolving catalyst (HEC) and ruthenium and/or iridium oxides at the anode side as oxygen evolving catalysts (OEC). The water oxidation half-reaction (oxygen evolution) is especially targeted due to its mechani­stic complexity and high activation energy.

Our approach

In order to make the costs for this part of a light driven electrolyzer economically viable, earth-abundant, low-cost, nontoxic and durable catalysts are required. Materials of interest as OEC are porous layers of cobalt oxyhydroxides (CoO_xOH_y) and manganese(III) oxide (a-Mn₂O₃) [1], but also more complex oxides and alloys (nickel iron oxides, molybdenum cobalt allys. Thin layers can be prepared by reactive magnetron sputtering, spin coating or electrochemical deposition techniques. To replace costly platinum catalyst molybdenum sulfides such as amorphous MoS_x, carbon supported MoS₂ and ammonium thiomolybdate ((NH₄)₂Mo₃S₁₃) are under investigation.

Recent highlights

Of special interest is to elucidate the nature of catalytically active centers of these catalysts using spectroelec­trochemistry as well as synchrotron radiation techniques (soft X-ray photoelectron spectroscopy). In-operando/ in-situ techniques are used to study changes of the metal oxidation state of OEC electrodes in contact with the electrolyte under potential control. As an example, it could be demonstrated that Mn⁴⁺ ions are formed at the elec­trode-electrolyte interface under oxygen evolution conditions on top of a-Mn₂O₃ or birnessite type oxides characterized by a layer structure [ [2]-[3]].

In case of HER-catalyst MoS₂, it has been demonstrated that the catalyst can electrochemically be stabilized and activated using a carbon support (multi-walled carbon nanotubes of small diameters).

Since the catalysts have to be deposited on photosensitive semiconducting electrode surfaces the compatibility of catalyst layer and semiconductor surface is an important issue [3].

Fig. 1.

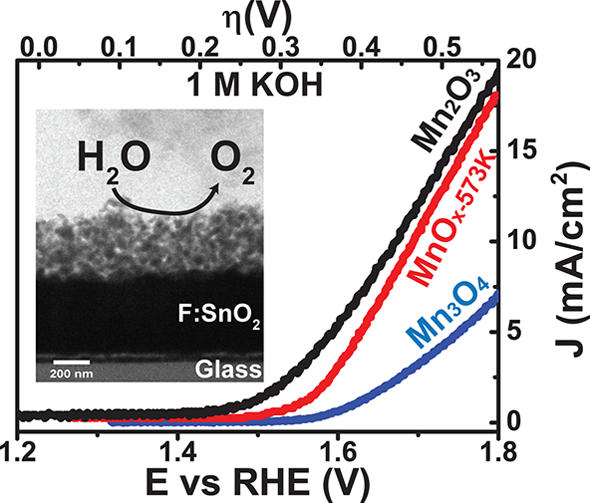

a-Mn₂O₃ is the most active phase in the Mn-O system as OEC. Oxygen evolution current densities of 10 mA/cm² were achieved for highly porous, ~1 µm thick electrodeposited Mn₂O₃ films at an overpotential of 340 mV (pH 14). The catalytic activity is strongly affected by the large variation in Mn‑O bond lengths, Mn oxidation states, and the presence of oxygen point defects.
©HZB/Fiechter

Fig. 2.

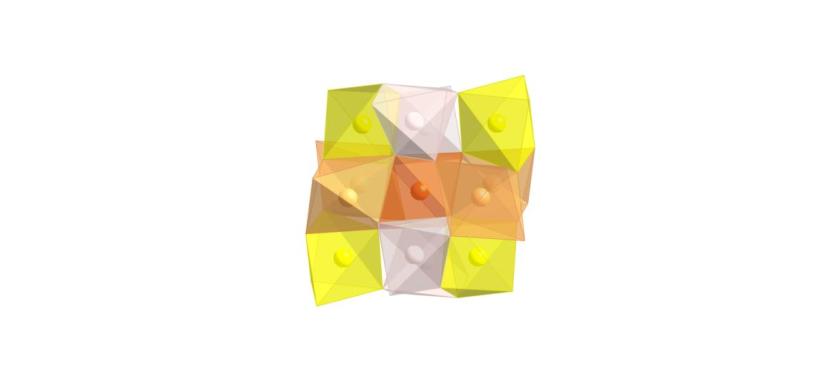

Section of the crystal structure of a-Mn₂O₃. Mn³⁺ ions are octahedrally coordinated by six oxygen atoms. The resulting d⁴ electron configuration of Mn³⁺ ion in the octahedral ligand field causes strong Jahn Teller distortion of the Mn³⁺O₆ units leading to short O-O distances of 2.55 Å which could facilitate the O₂ generation from these sites in the process of electrochemical water splitting.
©HZB/Fiechter
