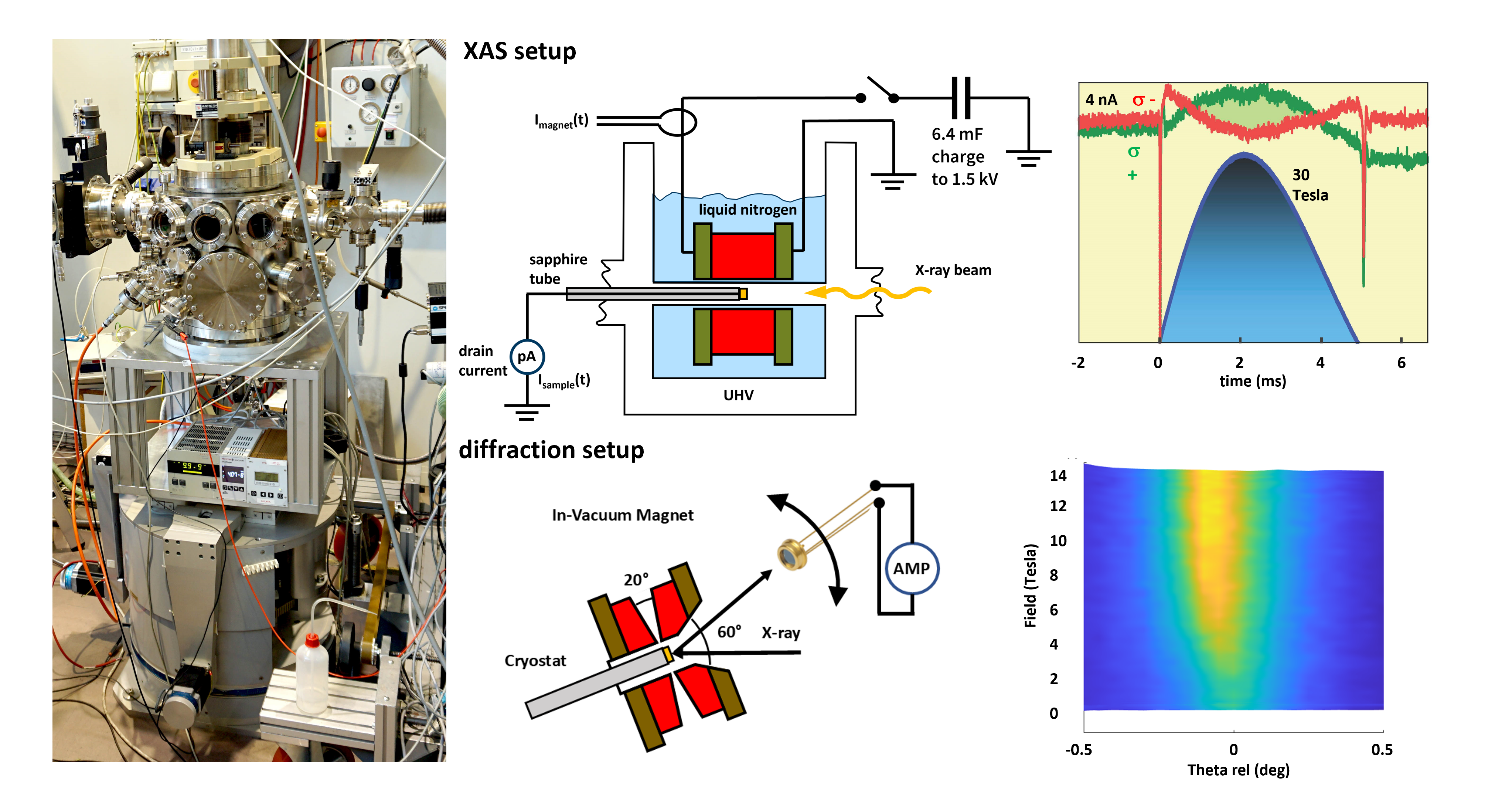

Pulsed-field

Pulsed-field

Methods

Remote access

not possible

Beamline data
Energy range 120 - 2000 eV
Energy resolution 10 000
Flux 1012
Polarisation
  • linear any angle (with restrictions)
  • circular
Focus size (hor. x vert.)
  • focussed beam:
    typically 100 µm x 50 µm
    ultimate 40 µm x 10 µm
  • collimated beam:
    ≤ 1.7 mm x 1.5 mm (depending on apertures)
Phone +49 30 8062 14717
More details UE46_PGM-1
