U41-PEAXIS
PEAXIS - Combined RIXS and XPS

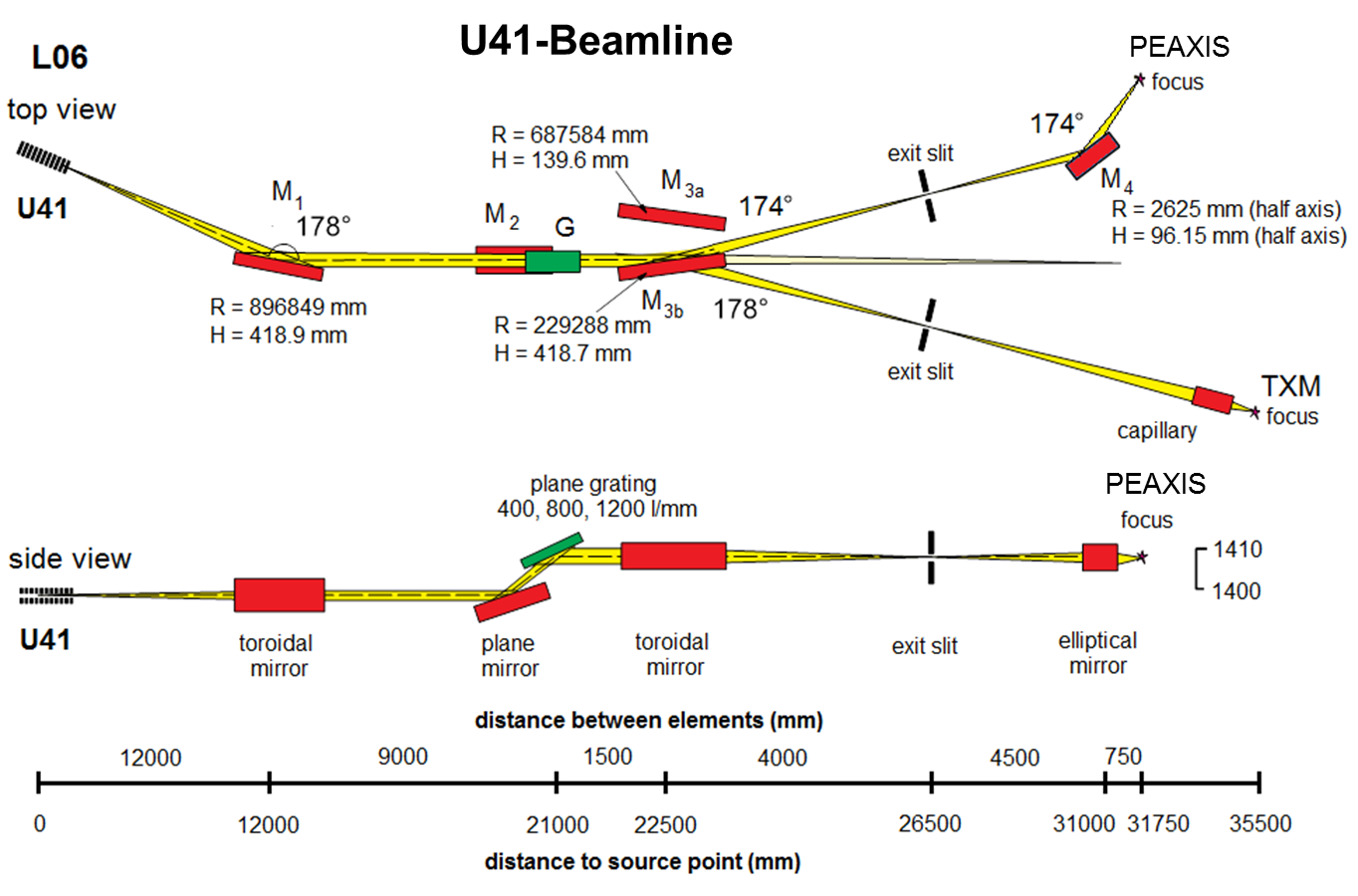

U41-PEAXIS beamline is one of the highest flux beamlines at BESSY II. It provides highly focused soft X-rays, thanks to the ellipsoidal refocusing mirror. The beamline is connected to a fixed endstation PEAXIS that is dedicated to studies of angle-resolved RIXS (Resonant Inelastic X-ray Scattering) and PES (PhotoElectron Spectroscopy) on solids.
| Station data | |
|---|---|
| Temperature range | 20 ~ 1000 K |
| Pressure range | 10-8 ~ 10-9 mbar |
| More details | PEAXIS |
| Beamline data | |
| Segment | L06 |
| Location (Pillar) | 7.2 |
| Source | U41 (Undulator) |
| Monochromator | 800 l/mm PGM |
| Energy range | 180 eV - 1600 eV (RIXS: 200 eV - 1200 eV) |

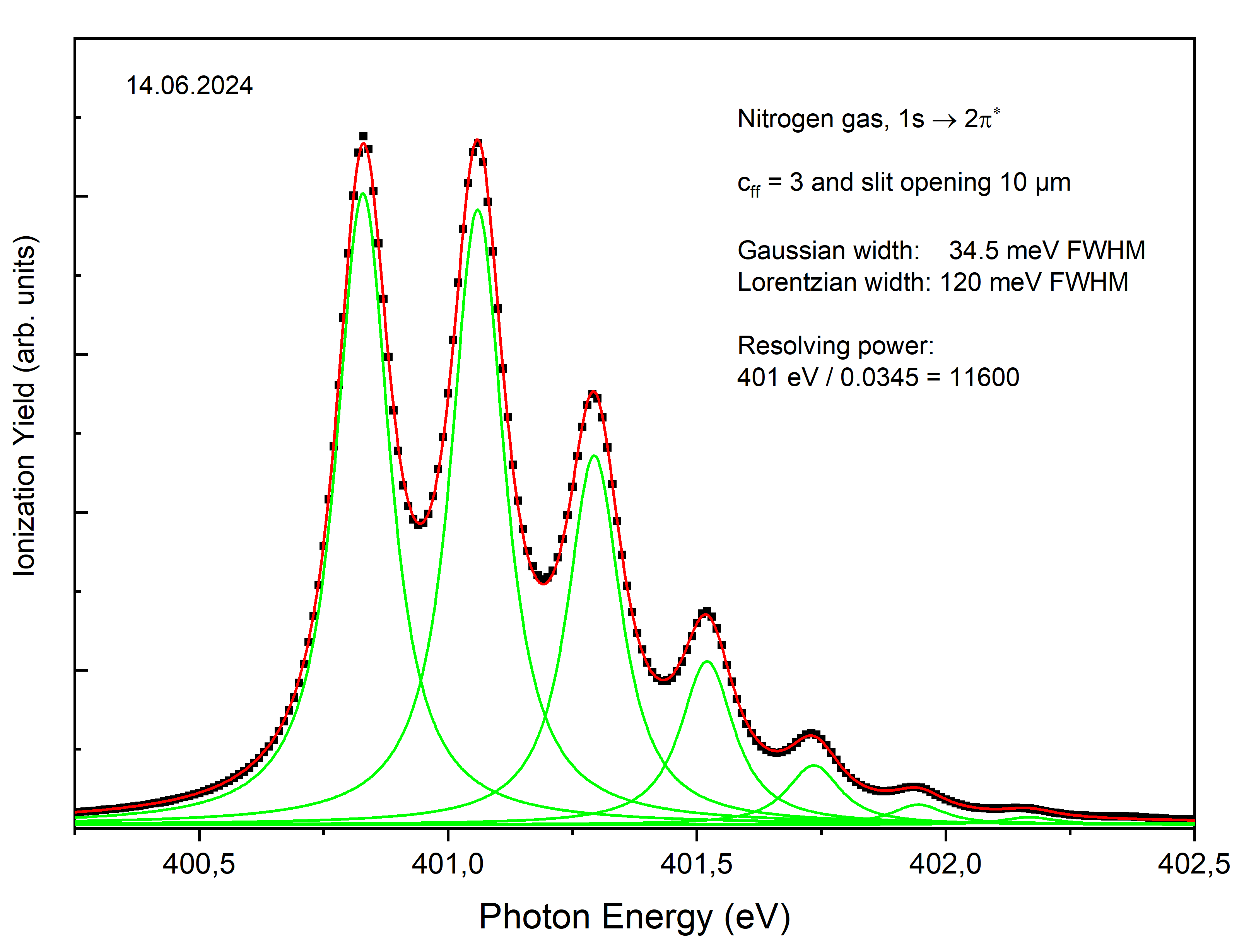

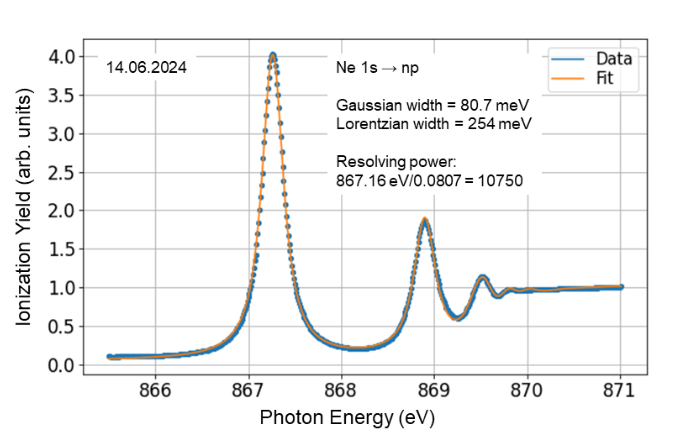

| Energy resolution | E/ΔE@400 eV: 6500 to 14000 E/ΔE@867 eV: 5500 to 12500 (depending on setup) |

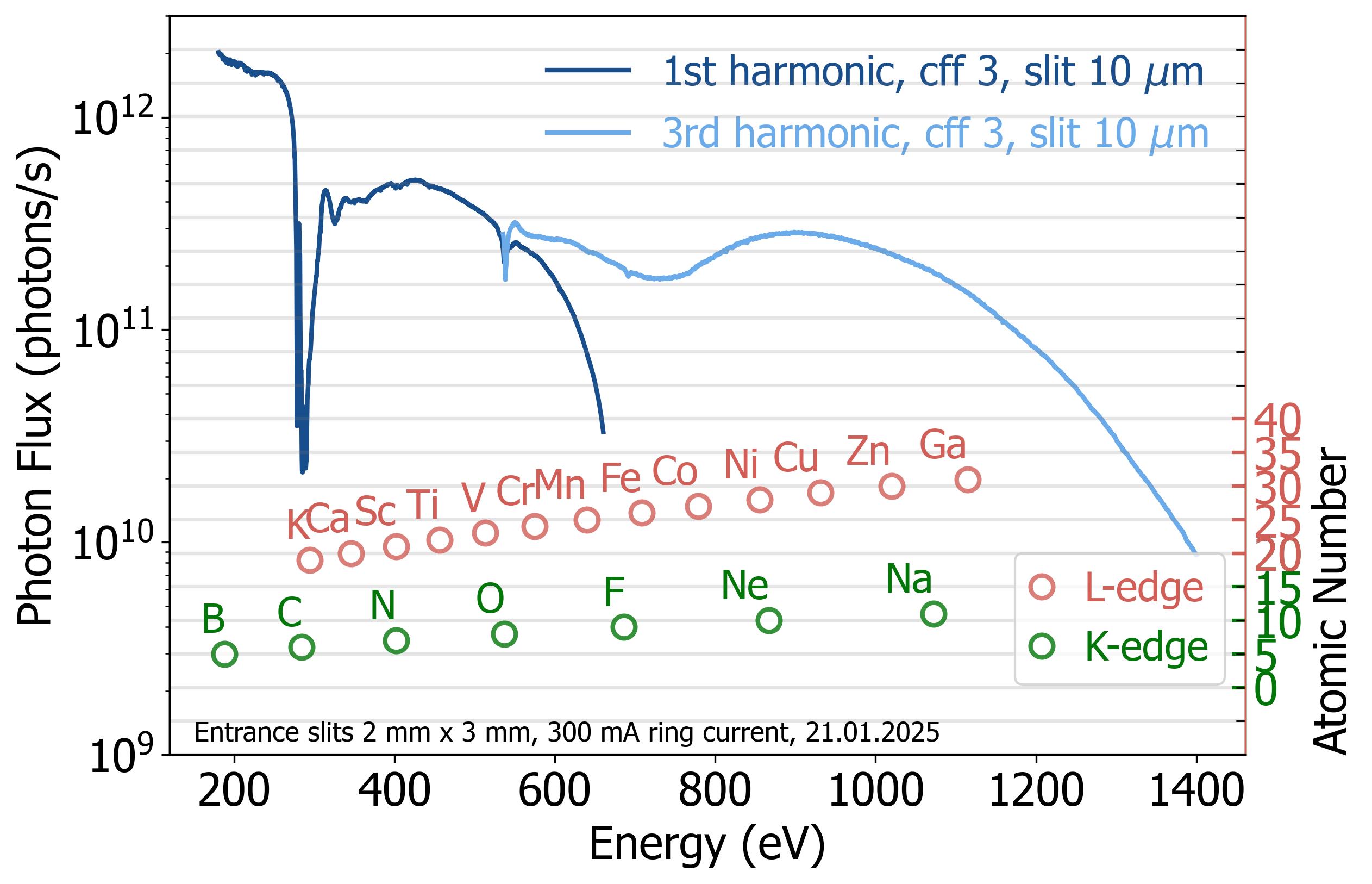

| Flux | photons (s-1 (250 mA ring current)-1) at sample: @400 eV: 1.4*1012 to 2.4*1011 @900 eV: 4.6*1011 to 7.7*1010 (depending on setup) |
| Polarisation | horizontal |
| Divergence horizontal | -- mrad |
| Divergence vertical | -- mrad |

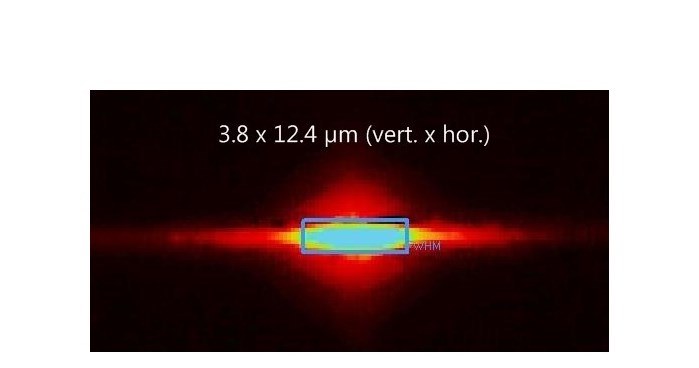

| Focus size (hor. x vert.) | 15 µm x 4 µm |
| User endstation | not possible |
| Distance Focus/last valve | 750 mm |
| Height Focus/floor level | 1410.6 mm |
| Beam availability | 12h/d, 60h/week |
| Phone | (030) 8062-13154 |
