PM4
Soft X-ray dipole variable polarisation with PGM and MHz Chopper for LowDosePES
This soft x-ray bending magnet beamline is equipped with a Plane Grating Monochromator operated in collimated light (collimated PGM) and with a MHz Chopper System to create single bunch on demand for the ArTOF Low Dose PES end-station.
| Station data | |
|---|---|
| Temperature range | 20-500 K by resistive heating; up to ~1200 / 1700 K long-term / flashing by electron bombardment; direct current heating also possible |
| Pressure range | Base pressure within <5x10^-10 and 3x10^-9 mbar. With possibility to dose selected gases. |
| More details | LowDosePES |
| Beamline data | |
| Segment | L08 |

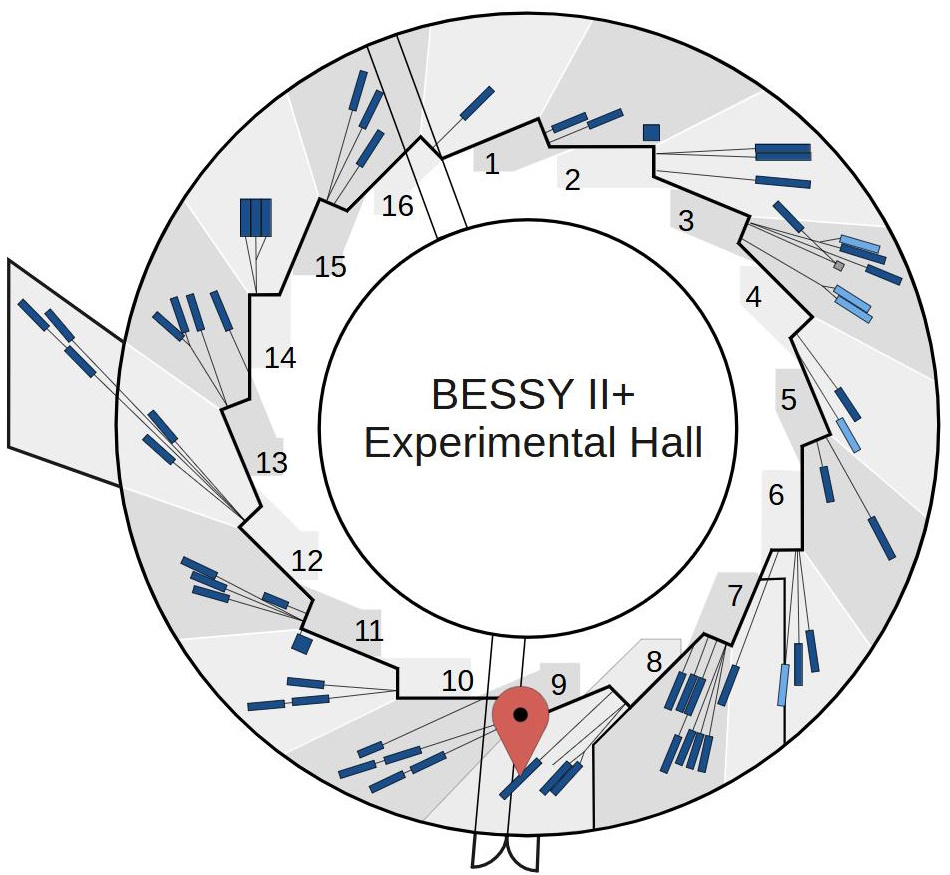

| Location (Pillar) | 10.1 |
| Source | D81 (Dipole) |
| Monochromator | PGM |
| Energy range | 20 - 2000 eV |
| Energy resolution | 6,000 at 400 eV |
| Flux | 1e9 - 1e10 phot/s |
| Polarisation | horizontal |
| Divergence horizontal | 1.5 mrad |
| Divergence vertical | 1 mrad |
| Focus size (hor. x vert.) | down to 0.1 mm x 0.1 mm |
| User endstation | not possible |
| Distance Focus/last valve | 1050 mm |
| Height Focus/floor level | 1415 mm |
| Beam availability | 24h/d |
| Phone | +49 30 8062 14713 |
