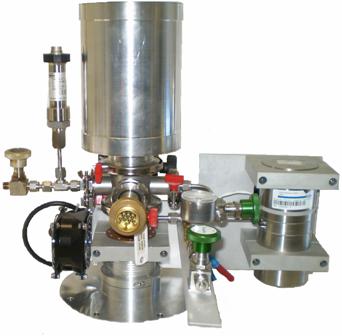

CGA-PTR2
Mini pulse tube cooler with gas adsorption cell
The pulse tube cooler is equipped with 2 capillaries for gas in-situ gas adsorpion investigations in the tempererature range from 65K bis 320K.
| Cryostat with Cell | |
|---|---|
| Pressure Range | 0.2 MPa |
| Sample Space Dia./Height | 10 mm x 40 mm |
| Insert suitable to cryostat | stand-alone |
| Temperature Range | 65 K - 320 K |
| Thermometry Sensors | Si-Diode, Pt-100 |
