UE52_SGM
Soft X-ray undulator radiation variable polarization with SGM and resonant bunch excitation
Weichröntgenstrahlrohr für flexible Polarisation für den Energiebereich von 100 bis 1500 eV. Die Größe des Röntgenspots beträgt ca. 60 µm (horizontal). Die Polarisation der Röntgenstrahlung kann frei gewählt werden zwischen linear (jede Orientierung im Raum) und zirkular. Resonante Pulse Anregung erlaubt "single bunch on demand".

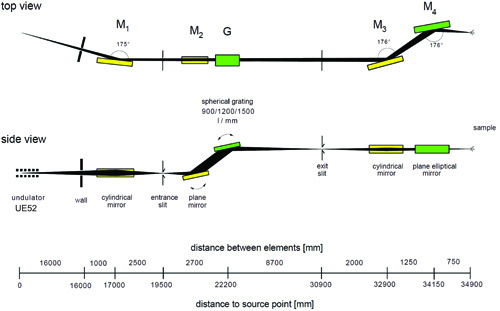

Taken from Senf et al. Nucl. Instrum. Meth. Phys. Res. A 467-468, 474-478(2001).
| Beamline data | |
|---|---|
| Segment | H09 |

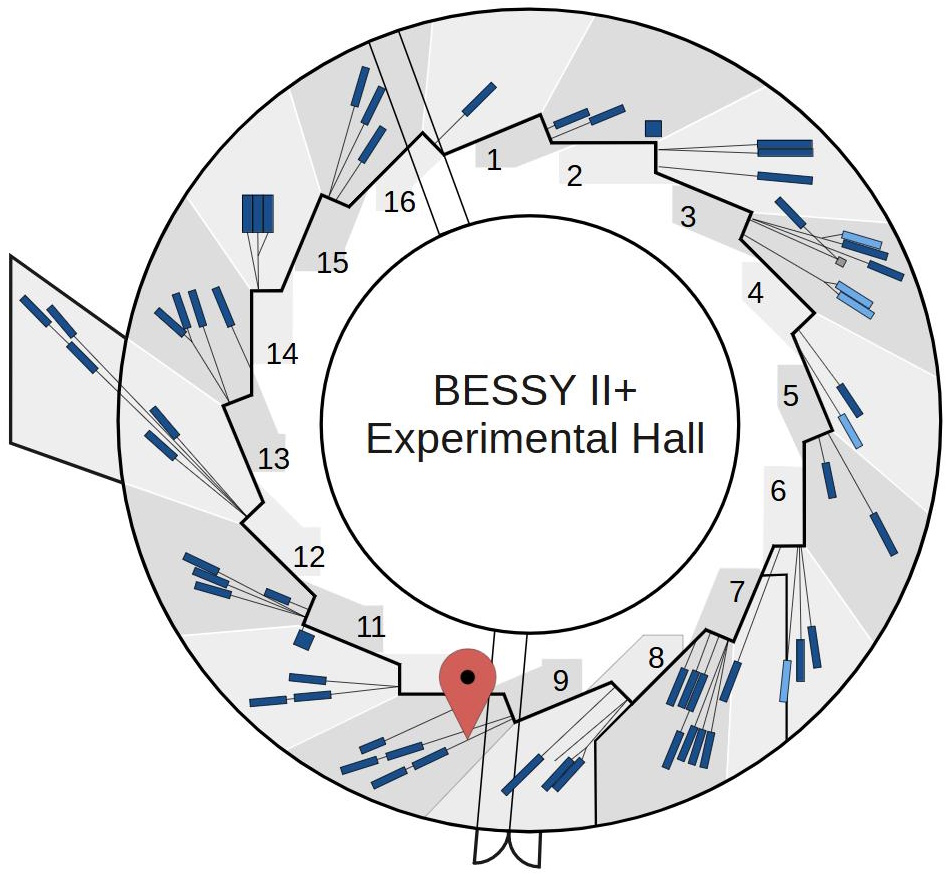

| Location (Pillar) | 10.2 |
| Source | UE52 (Elliptical Undulator) |
| Monochromator | SGM |
| Energy range | 100 - 1500 eV |
| Energy resolution | > 4,000 |
| Flux | > 1012 |
| Polarisation | variable |
| Divergence horizontal | 6 mrad |
| Divergence vertical | 1 mrad |
| Focus size (hor. x vert.) | 60 µm (hor) |
| User endstation | no |
| Distance Focus/last valve | 530 mm |
| Height Focus/floor level | 1417 mm |
| Beam availability | 12h/d |
| Phone | +49 30 8062 13431 |
| Premonochromator optics | M1: cylindrical mirror, horizontal deflection, 2Θ=175o, gold coated, water cooled, vertical demagnification (17:2.5) of source on entrance slit |
| Entrance slit | Slit setting: 0-2000 μm, water cooling, insolated blades for vertical beam position sensing, on line laser diffraction slit width monitor |
| Monochromator | Principle: variable deflection angle, focused spherical grating monochromator Optical components: M2: plane mirror, vertical deflection, 2Θ=169-175o, gold coated, water cooled G1-3: spherical gratings, vertical deflection, 2Θ=169-175o, gold coated, water cooled |
| Exit slit | Slit setting= 0-2000 μm, ±200 mm translation, on line laser diffraction slitwidth monitor |
| Postmonochromator optics | M3: cylindrical mirror, horizontal deflection, 2Θ=176o, gold coated, vertical demagnification (1:1) of exit slit M4: plane elliptical mirror, horizontal deflection, 2Θ=176o, gold coated, horizontal demagnification of source |
| References | F. Senf et al. Nucl. Instrum. Meth. A 467-468, 474-478 (2001). K. Godehusen, Phys. Rev. A 68, 012711 (2003) |
| Applicable station(s) | |
| AXSYS TES | 20 K - room temperature |
| AXSYS-nmTransmission NEXAFS | room temperature |
from top to bottom, horizontally, vertically and circularly polarized light (for an exit slit width of 20 µm).
for the three gratings of the monochromator and for two representative settings of the exit slit (10 and 20 µm).
