U125_PGM
U125_PGM Undulator beamline
| Station data | |
|---|---|
| Temperature range | Measurement: 40–300 K; Preparation up to 2300 K |
| Pressure range | ~10-9 mbar (for details contact the instrument scientist) |
| Weitere Details | spin-ARPES |
| Beamline data | |
| Segment | H03 |

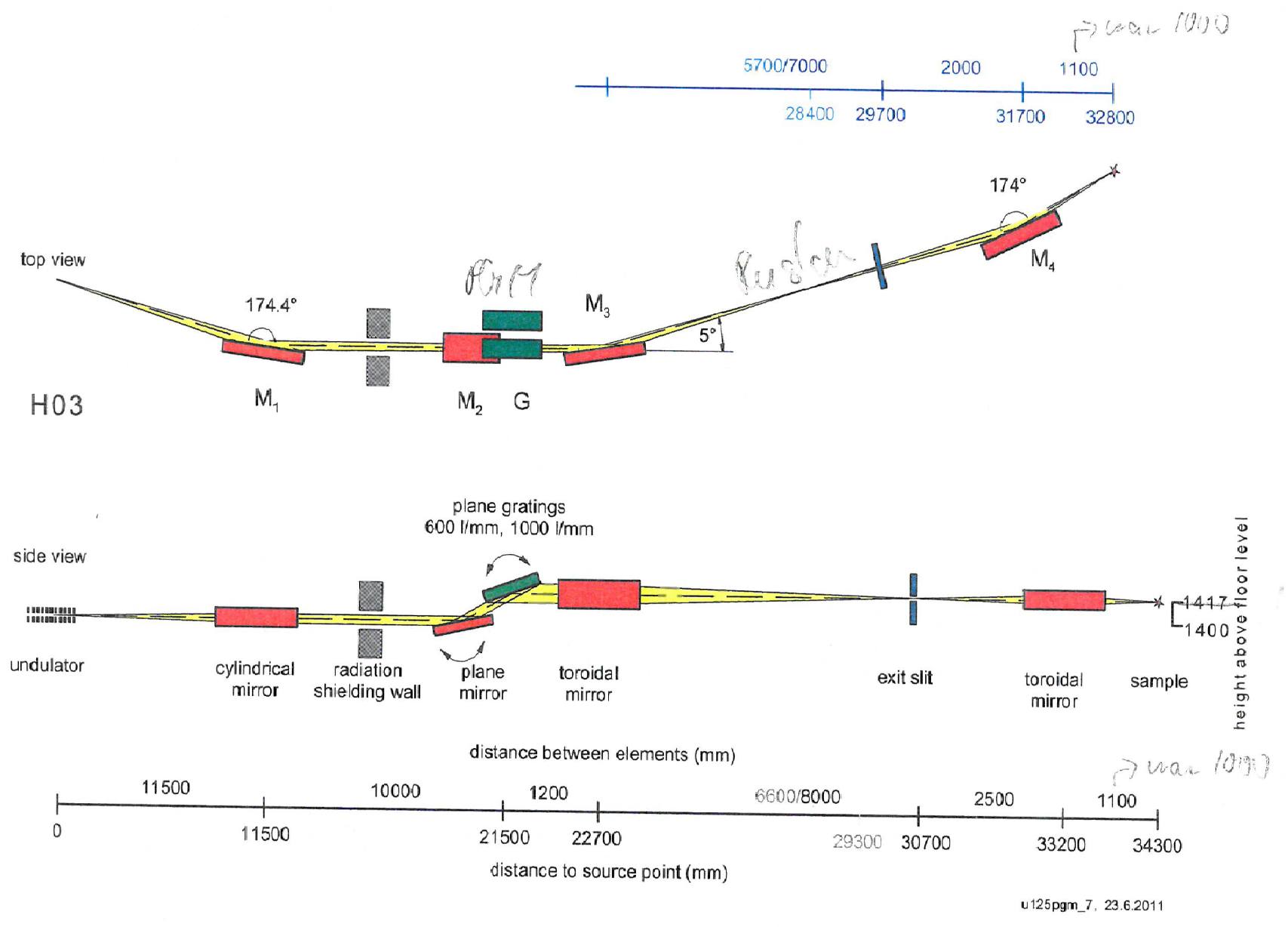

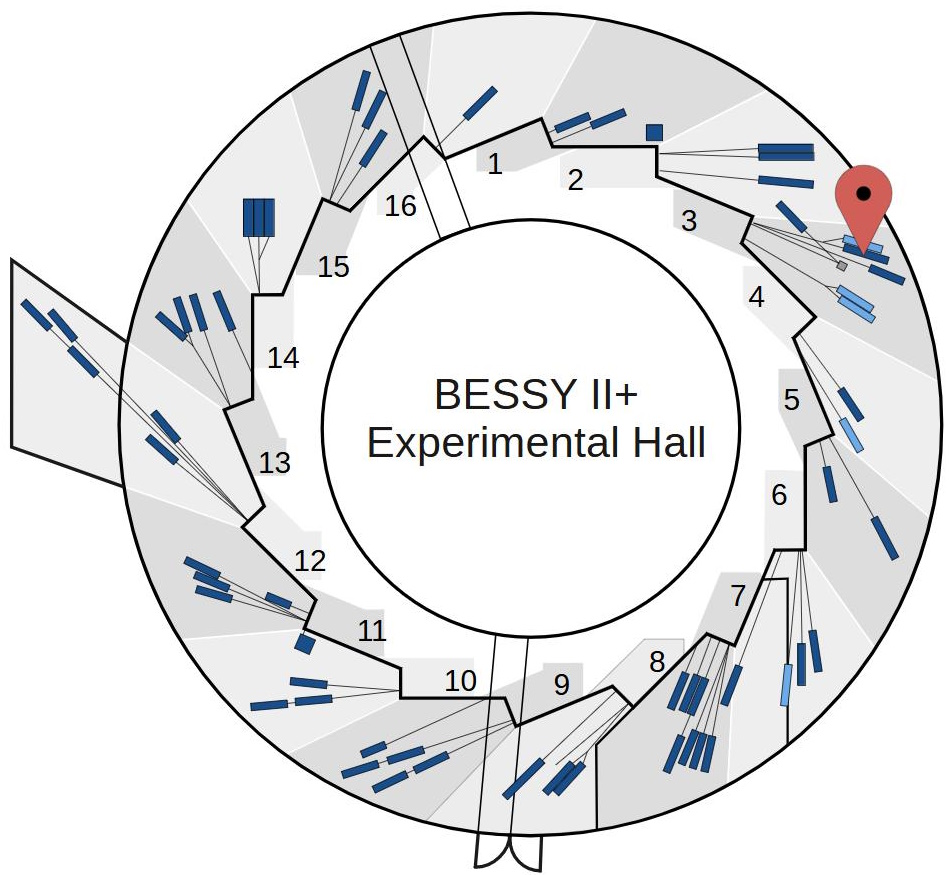

| Location (Pillar) | 4.2 |
| Source | U125-2 (quasi-periodic undulator) |
| Monochromator | PGM with 2 gratings (600 l/mm and 1000 l/mm) |
| Energy range | 15 - 200 eV (optimal range) |
| Energy resolution | < 1 meV for E < 100 eV |
| Flux | Expected >10^13 (photons/s/0.1%bw/100 mA) |
| Polarisation | Linear horizontal (fixed) |
| Divergence horizontal | 17 mrad |
| Divergence vertical | 7 mrad |
| Focus size (hor. x vert.) | 68 μm x 25 μm |
| User endstation | not possible |
| Distance Focus/last valve | 1100 mm |
| Height Focus/floor level | 1417 mm |
| Beam availability | 12h/d |
| Phone | +49 30 8062 14701 |
For more details and current status contact the beamline scientist(s).
