Analytic Infrastructures

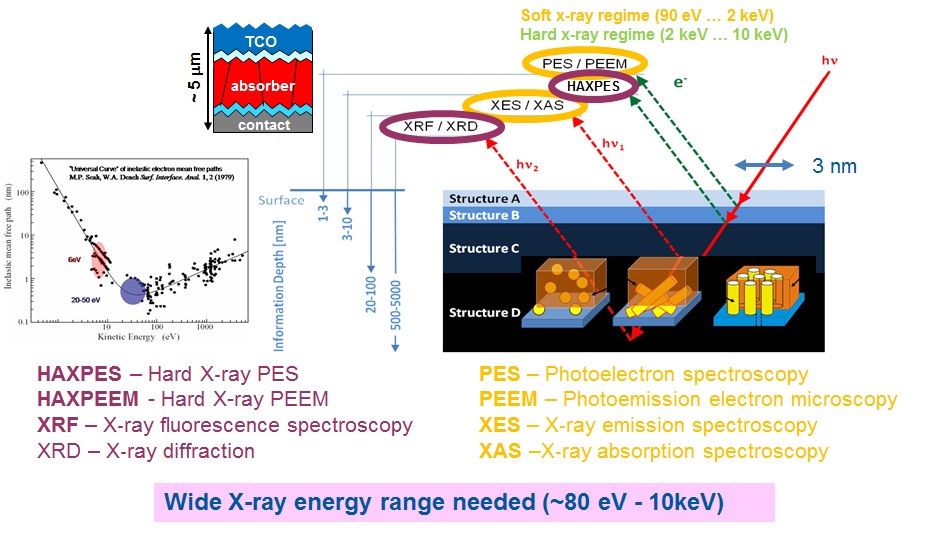

EMIL is a state-of-the-art surface and interfaces analysis laboratory. By application of a large variety of methods (PES, PEEM, HAXPES, XES, XRF, XRD, ambient-pressure-HAXPES), surfaces and interfaces can be sampled to an information depth of up to 5000 nm. The instruments allow for in-system, in-situ and in-operando investigations.

With a canted double undulator system in the BESSY II storage ring, X-ray ranging from 80 eV up to 10 keV are available at five interaction points named: SISSY-1, SISSY-2, CAT, PINK, and PEEM.
