Raytraced Beamline Performance Data
The optical performance of the EMIL beamline was intensively calculated with RAY [1].
The angular ranges of both PGMs are up to 15.3° for the mirror and 19.1° for the gratings. This allows for a wide operating energy range without grating change. At the standard cff-factor (2.25) the usable energy range is 70 – 2000 eV.

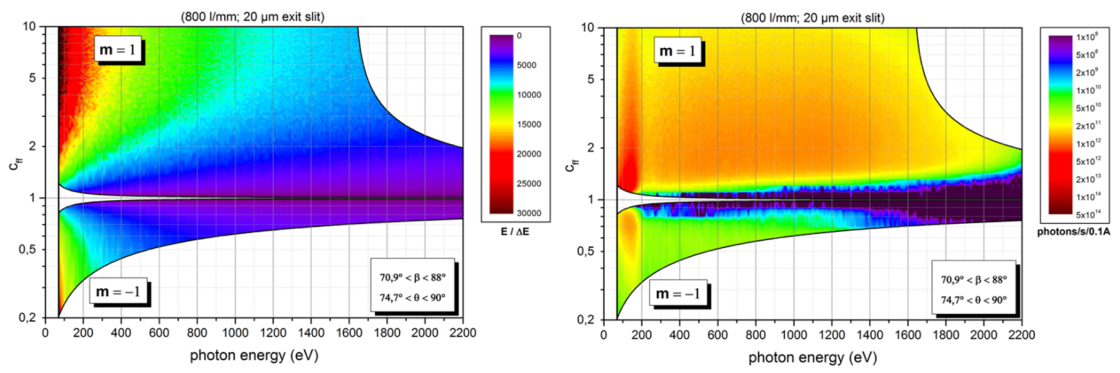

Figure 1 shows the estimated resolving power (left side) and photon flux at sample position (right side) for the UE48 soft X-ray beamline as a function of energy and cff-factor.
Figure 2 Calculated photon flux for UE48 soft and U17 hard X-ray beamline.

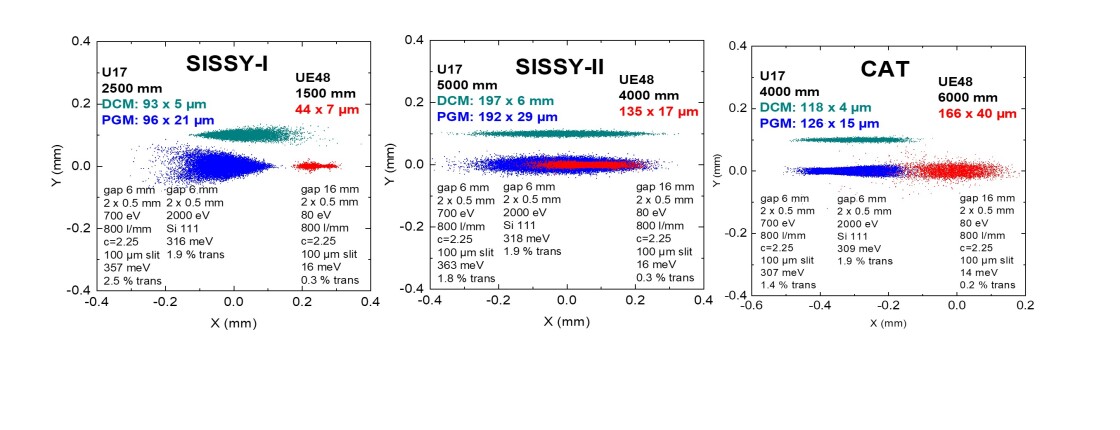

Figure 3 shows the calculated foci at the different given interaction points.
- F. Schäfers, RAY - the BESSY raytrace program, (In Springer Series in Modern Optical Sciences: Modern Developments in X-Ray and Neutron Optics, eds. A. Erko, M. Idir, Th. Krist, A.G. Michette), Springer Berlin/Heidelberg, Vol. 137, pp. 9-41 (2008).
