Gregor Schiwietz
Eine virtuelle Tour zu unserem UHV Elektronenspektroskopie-Platz
ECR source of the CN injector
cyclotron with HF resonators
switcher magnets for cave b, c, and d

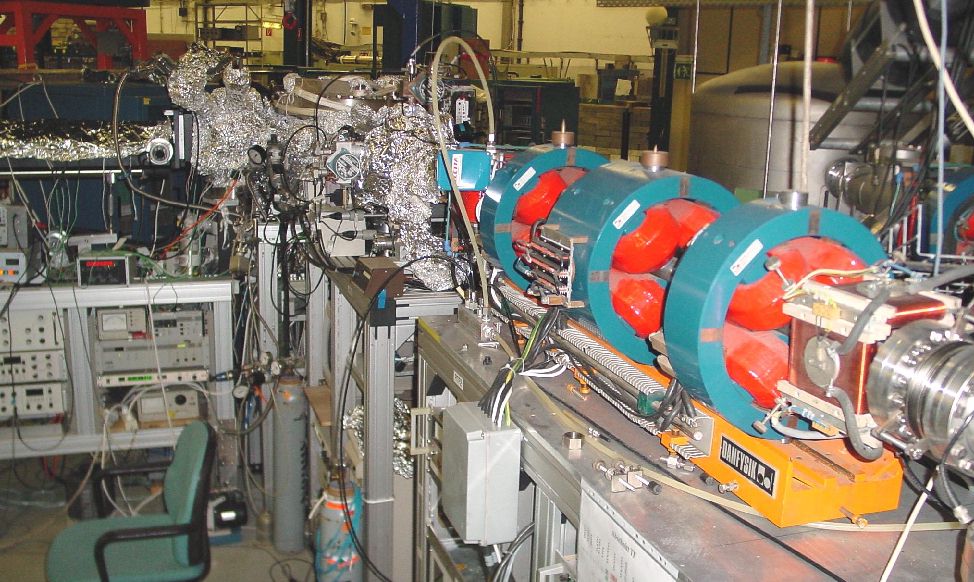

UHV beam line (TF) with magnetic quadrupole lens
wrapped UHV setup (3 chambers + manipulator)
unwrapped setup with heating tapes
target-preparation chamber
manipulator with sample holder and quartz

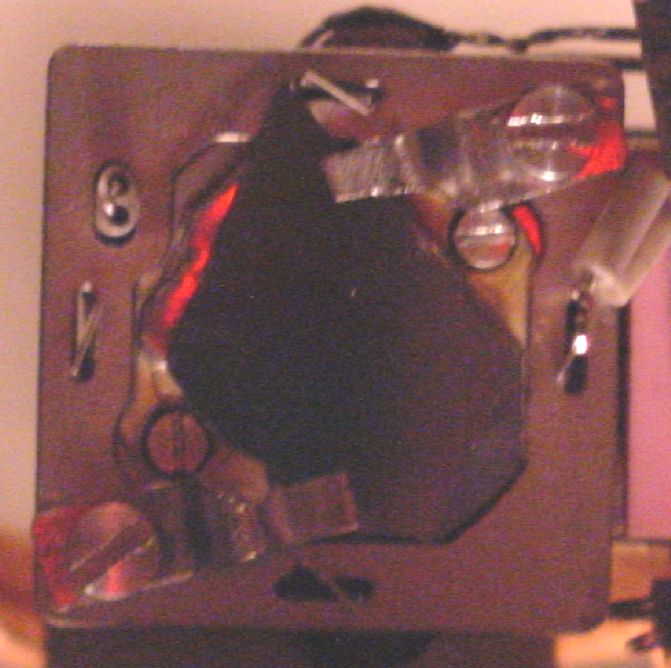

close-up of the sample holder
double differential pumping stage

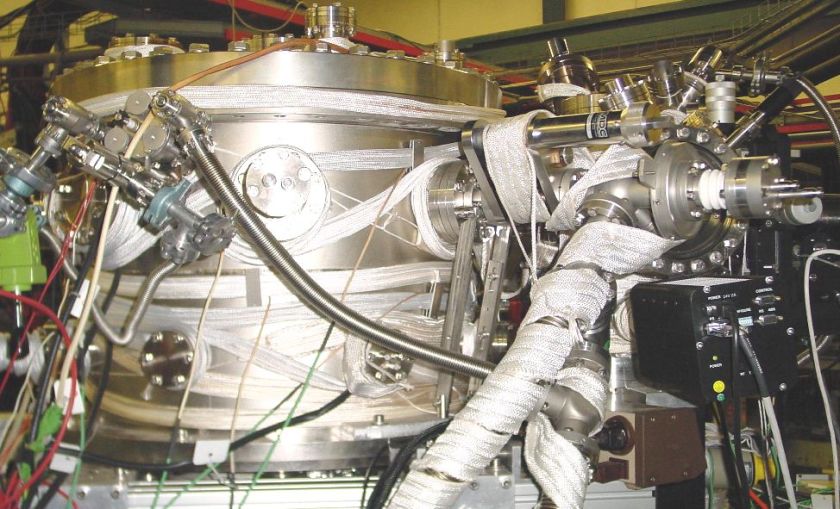

uv- and x-ray source at main chamber with 2 magnetical shieldings
post-stripper foil (for charge equilibration)
residual-gas analyzer at main chamber
typical mass spectrum of residual gases in main chamber
typical (best) pressure 9E11 mbar using all pumps
electron spectrometer (left) and x-ray source (right)
target manipulator (ions enter from the left side)
top view (ions enter from the left side)
